　 SR-110
Single 10-inch active line array

· Built in high performance DSP, 24-bit, AD/DA  48kHz FIR sampling rate, RS485 connector, Software control is available
· Power supply, AC100V-250V is available
· Professional Audio Class D Circuit
· With shield box sealed, easy to install and protect

· Widely application for Line array speaker system,full range speaker and combo speaker system


Application scope: sound reinforcement for small performances, dining bars, sports venues, and bars.


Technical Specifications Active two-way linear array loudspeaker
frequency response range 48Hz-16KHz
rated power 460W(RMS]
Peak Power 1840W(PEAK)
Nominal impedance 8 ohms
sensitivity 103dB
Maximum sound pressure 130dB
Unit composition LF1X10" neodymium magnetic conical low-frequency unit, HF1X3" neodymium diaphragm compression driver, installed on waveguide and acoustic lens
projection angle 0-10°/110°
Box material Multi-layer birch plywood;
Spray painting color Black polyurea paint
protective face shield Black perforated steel + sound-permeable fabric

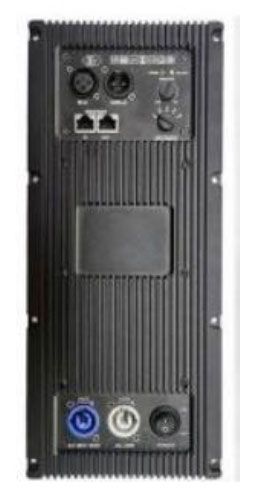

Input Active power amplifier with built-in input

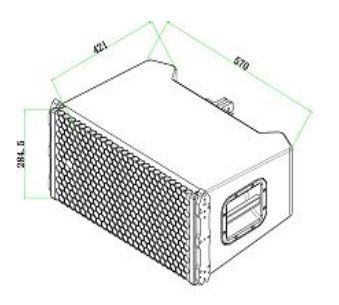

Size (WXHXD) 570*284.3*357.4mm
Net weight 22kg






×
