| Technical Specifications | Active linear array ultra-low frequency loudspeaker (paired with SR-110) |
| frequency response range | 32Hz-110Hz |
| rated power | 800W（RMS） |
| Peak Power | 3200W(PEAK) |
| Nominal impedance | 8 ohms |
| sensitivity | 97dB |
| Maximum sound pressure | 126.3dB |
| Unit composition | 1×18" neodymium magnetic conical low-frequency driver |
| Box material | Multi-layer birch plywood |
| Spraying color | Black polyurea paint |
| protective face shield | Black perforated steel + sound-permeable fabric |
| Input | Built-in input of active module |

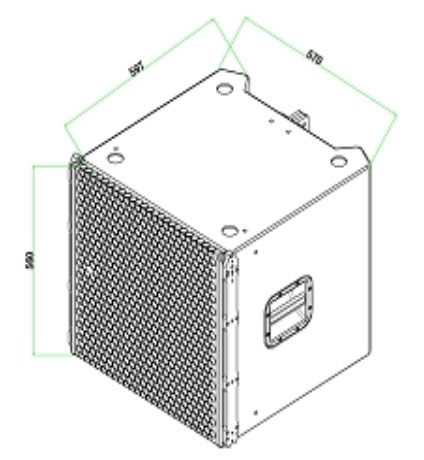

| Size (W×H×D) | 570*560*597.1mm |
| Net weight | 42kg |

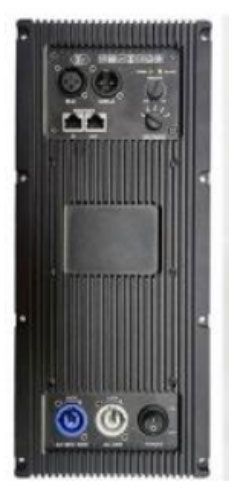

FEATURES
· Built in high performance DSP, 24-bit, AD/DA 48kHz FIR sampling rate, RS485 connector, Software control is available
· Power supply, AC100V-250V is available
· Professional Audio Class D Circuit
· With shield box sealed, easy to install and protect
· Widely application for Line array speaker system,full range speaker and combo speaker system
| Output Power (1 kHz/EIA) | Stereo 8 Ω: 1200W, Stereo 4 Ω: 2200W |
| Frequency Response (BYPASS-ON) | 20 Hz - 20 kHz ± 0.5dB |
| Input Sensitivity | 1.3V |
| THD%: 1/8 RMS, 1KHZ | <0.05% |
| Slew Rate (RMS,1KHZ) | >20V/µs |
| Damping Factor (RMS,1KHZ) | >200 |
| Dynamic Range | ≥95dB |
| S/N Ratio (A-weighted, RMS) | ≥95dB |
| Voltage Gain | 34dB |
| Input Impedance | Balance:20K Ω, Unbalanced:10K Ω |
| Output Circuit Design | SMPS+CLASS D |
| Cooling System | Low-noise, Variable speed fans; air flow from front to the rear |
| Power Supply | AC110V~AC250V~50/60Hz |
| Dimensions (W×D×H) | 142mm x 332mm x 89mm |
| Weight | 2Kg |
