| Technical Specifications | Active linear array ultra-low frequency loudspeaker (paired with SR-210) |
| frequency response range | 32Hz-110Hz |
| rated power | 800W（RMS） |
| Peak Power | 3200W(PEAK) |
| Nominal impedance | 8 ohms |
| sensitivity | 97dB |
| Maximum sound pressure | 126.3dB |
| Unit composition | 1×18" neodymium magnetic conical low-frequency driver |
| Box material | Multi-layer birch plywood |
| Spraying color | Black polyurea paint |
| protective face shield | Black perforated steel + sound-permeable fabric |
| Input | Built-in input of active module |

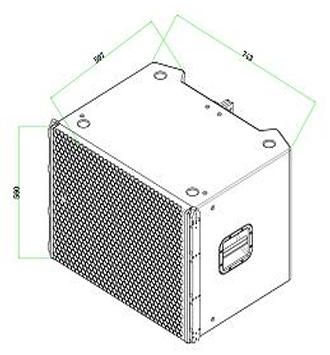

| Size (W×H×D) | 743*560*598mm |
| Net weight | 46kg |
FEATURES

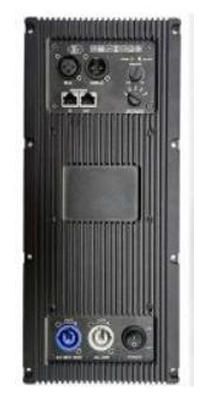

· Built in high performance DSP, 24-bit, AD/DA 48kHz FIR sampling rate, RS485 connector, Software control is available
· Power supply, AC100V-250V is available
· Professional Audio Class D Circuit
· With shield box sealed, easy to install and protect
· Widely application for Line array speaker system,full range speaker and combo speaker system
| Output Power (1KHZ/EIA) | Stereo 8Ω: 1200W, Stereo 4Ω: 2200W |
| Frequency response (BYPASS-ON) | 20 Hz - 20kHz ± 0.5dB |
| Input sensitivity | 1.3V |
| Harmonic distortion/THD%: 1/8 RMS, 1KHZ | <0.05% |
| Slew rate (RMS, 1KHz) | >20V/µs |
| Damping Factor (RMS, 1KHZ) | >200 |
| Dynamic Range | ≥95dB |
| Signal-to-Noise Ratio (S/N ratio) (A-weighted, RMS) | ≥95dB |
| Voltage gain | 34dB |
| Input impedance | Balanced: 20K Ω, Unbalanced: 10K Ω |
| Circuit level/Output circuit design | SMPS + CLASS D |
| Cooling system | Low-noise, Variable speed fans; air flow from front to the rear |
| Power supply voltage | AC110V ~ AC250V ~ 50/60Hz |
| Product dimensions (W×D×H) | 142mm × 332mm × 89mm |
| Product weight | 2KG |
